Laser-Cut vs Standard Car Keys Southlake: High-Security Keys Explained

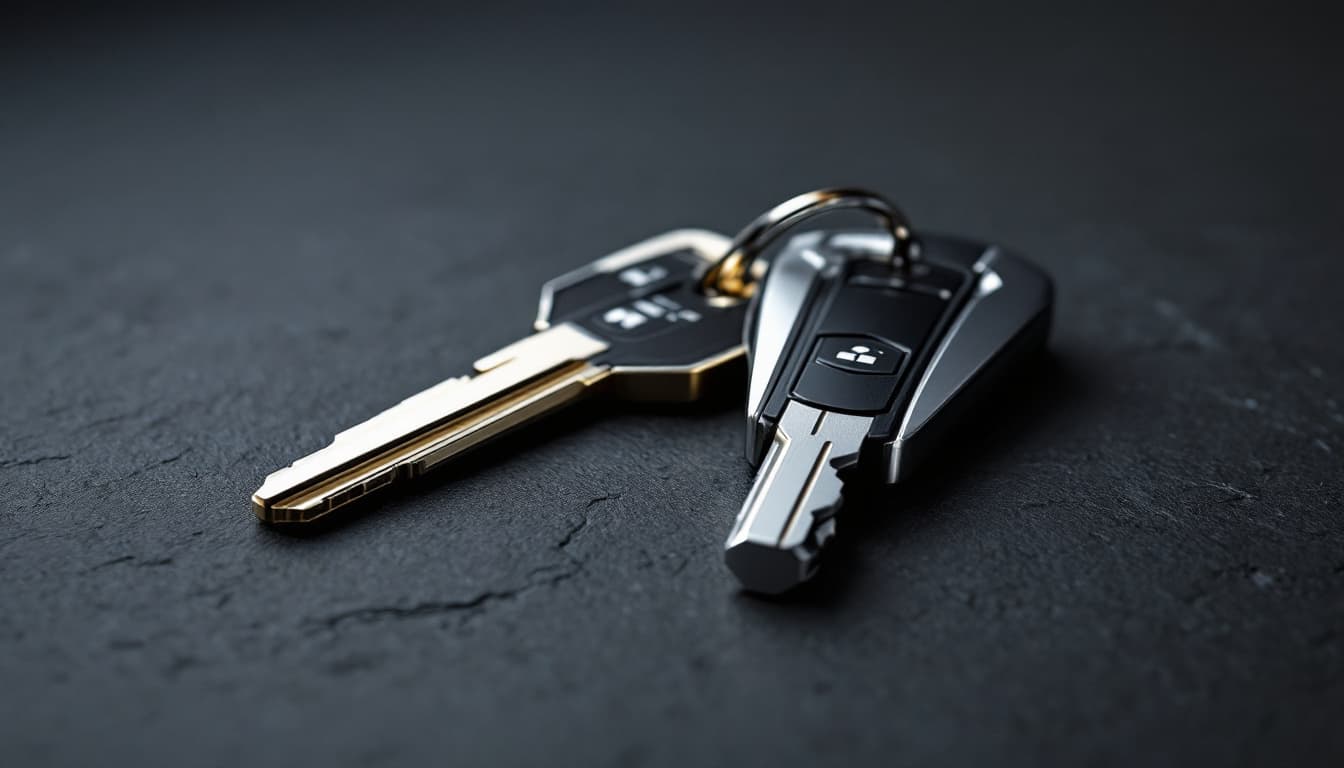

Look at two car keys side by side and you may notice one has jagged teeth along the edge while the other has a smooth blade with a winding groove milled down the middle. That groove is a "laser-cut" — or sidewinder — key, and it is the reason the hardware store demurred when you asked for a copy. Southlake TX Locksmiths cuts both standard and laser-cut keys mobile, by code or by copy. Call or text (972) 573-7978 across Southlake, Colleyville, Keller, Grapevine, Westlake and Trophy Club.

Quick Answer

Standard (edge-cut) keys carry their code in notches along the blade's edge — the familiar jagged silhouette. They are cut on common duplicators, and nearly every hardware store can copy the mechanical blade.

Laser-cut (sidewinder) keys carry their code in a milled channel down the blade's face. Despite the name, no laser is involved — a precision milling machine traces the winding groove. They require specialized cutting equipment, are typically thicker and more durable, work in either orientation, and pair with higher-security lock cylinders that resist picking.

Both key styles usually contain a transponder chip on modern vehicles, so any copy also needs programming or cloning to start the engine — which is why a mobile automotive locksmith, who does the cutting and the electronics in one visit, is usually the practical answer for either style.

Key Cutting Pricing

Estimates only. Final pricing depends on the vehicle, key blank and chip technology. We confirm the total before cutting.

Why the milled groove matters

The sidewinder groove is not cosmetic. Because the cut lives in the blade's face rather than its edge, the key can be inserted either way up — a small daily convenience — and the blade itself stays thick and strong, which is why laser-cut keys snap far less often than deeply notched edge keys. On the security side, the matching lock cylinders use wafers that read the groove from the side, a design meaningfully harder to pick than a basic edge-cut cylinder.

Manufacturers adopted laser-cut keys heavily across European brands and, over the last two decades, on a large share of mainstream vehicles — many Ford, Honda, Toyota, GM and Hyundai/Kia models now ship with sidewinder blades, either as insert keys or as the emergency blade inside a smart fob.

Why hardware stores turn these away

Duplicating a sidewinder blade requires a milling-style machine with the right jaws and software — a different tool class from the everyday duplicator behind the counter. Add the transponder in almost every modern key and the "cheap copy" errand becomes a two-stop failure: even a perfectly traced blade will crank-and-die without the chip programmed. A mobile locksmith carries the milling equipment and the programmer together, so the copy that comes off the truck actually starts the car. For the chip side of that story, see our transponder key cloning guide.

Cutting by code beats tracing a worn key

Every duplication copies the donor key's wear along with its cuts. On a laser-cut key that has opened doors for a decade, that wear adds up — and a traced copy of a worn key can bind in a healthy lock. The better method, especially for keys that already feel sticky: cut fresh by factory code, restoring the geometry the lock was born with. We cut by code for both standard and laser-cut blades on site. If your key already fights the ignition, our key won't turn guide explains what the wear is doing inside the cylinder.

Which do you have?

Quick field test: look at the blade. Jagged notches along one or both edges — standard. Smooth-edged blade with a snaking channel milled into the face — laser-cut. Fob with no visible blade at all — a smart key whose emergency blade (very often laser-cut) hides inside the shell. If you are pricing a spare, that distinction is most of the cost difference, and telling us your year, make and model on the phone settles it instantly. For overall spare strategy, our spare car key guide makes the case for having the second key cut before you need it.

Frequently Asked Questions

What is a laser-cut car key?

A key whose code is milled as a winding groove down the blade's face instead of notches along the edge — also called a sidewinder key. No actual laser: a precision milling machine cuts the channel. They are thicker, work in either orientation, and pair with pick-resistant cylinders.

Why won't a hardware store copy my laser-cut key?

Sidewinder blades need a specialized milling machine most counters do not have — and nearly all modern keys also contain a transponder that must be programmed or cloned for the engine to start. A mobile automotive locksmith does both in one visit.

Are laser-cut keys more expensive to replace?

Somewhat — the blanks cost more and the cutting equipment is specialized, so expect roughly $150–$320 for a cut-and-programmed spare versus $110–$240 for a standard key. All-keys-lost jobs run higher for either style.

Are laser-cut keys more secure?

Yes, meaningfully. The face-milled cut pairs with side-reading wafer cylinders that resist picking better than basic edge-cut locks, and the thicker blade resists breakage. The transponder chip provides the theft protection either way — the blade style is the mechanical layer.

Can you cut a laser-cut key without my original?

Yes. With ownership verified, we cut by factory code — no donor key needed. That is the standard path for all-keys-lost jobs and produces a factory-fresh cut rather than a copy of a worn key.

Do smart key fobs use laser-cut blades?

Very often, yes — the emergency blade hidden inside most proximity fobs is a small sidewinder blade. We cut those too, so your backup way into the car actually works.

Edge-cut or sidewinder, worn original or no key at all — the cutting and the chip work both happen at your curb. Call or text (972) 573-7978 and Southlake TX Locksmiths will cut your key by code anywhere in the Southlake area.
